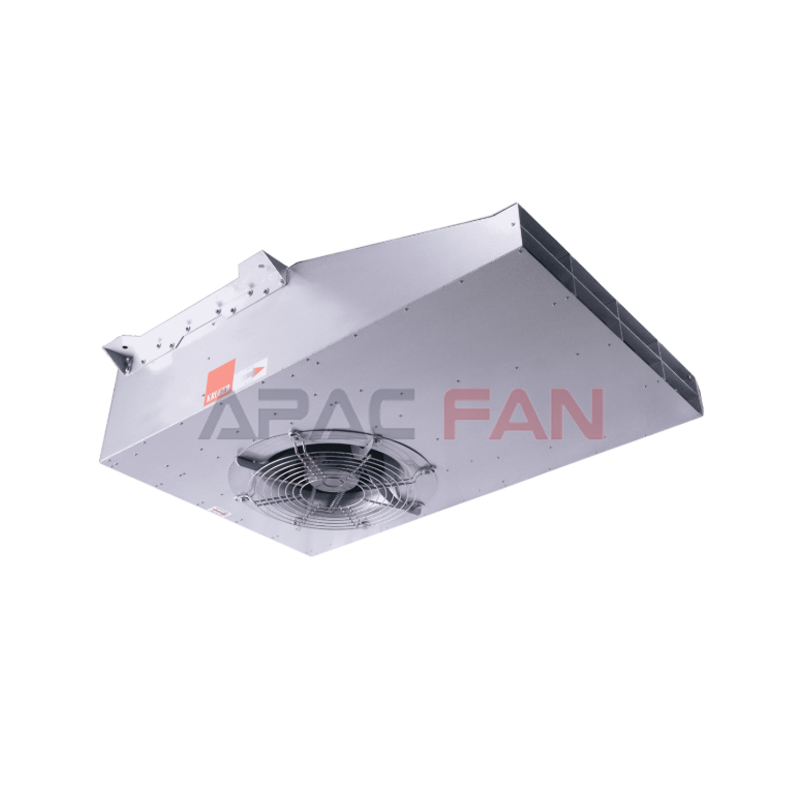

IJC II Series - Induced Jet Fan
Large volume flow rate, long throw distance, low sound level.
Easy maintenance.
High temperature (up to 400°C/2 Hours) in accordance with EN12101-3 certification by TÜV SÜD a third party globally renowned testing and certification organisation.
Nominal data
Description
Quick Facts
• Size from 50 to 100
• Capacity up to 11,100 m3/h
• Thrust force up to 97N
• Outlet velocity up to 26.2 m/s
• Suitable for ventilation and smokespill application
Operating Temperature
• General ventilation: -20°C to +55°C.
• Smoke exhaust system: 200°C, 250°C, 300°C or 400°C - 2 hrs
Motor
• General Ventilation
All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV).
Smoke Exhaust System
All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified). 60 Hz motor is available upon request.
Fan
• Galvanized sheet steel casing supplied with two mounting brackets.
• Centrifugal backward curved wheel in mild steel with polyester paint.
• Supplied with high carbon steel inlet guard.
